Polcd ISO9001 260 Nit 2.4 Inch Tft Display ST7789V2 240x320 Tft Screen

Brand Name : Polcd

Model Number : P024C117

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability : 40,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Size (inch) : 2.4

Resolution : 240*320

Brightness (cd/m²) : 260

Interface : 4 Wire SPI

Driver Ic : ST7789V2

Contact Now

What can we expect from this one? Before this question it is better to know some information about this Industrial Touch Screen. Screen size is 2.4 inch. A very common and hot selling size for small size TFT display. The TFT LCD offers a physical resolution of 240 * 320, clear enough for most scenes to be used. 260 nits allow this lcd to work well indoors.


Parameter:

Model

P024C117

Screen Size

2.4 inch

Number of Pixel

240RGB(H)x320(V)

Display area

36.72(H)x48.96(V)mm

Pixel pitch

51(H)x153(V)um

Pins

18 pins

Outline Dimension

42.72x60.26x2.30mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

260 nit

Contrast Ratio

250:1

Interface

4W SPI

Back-light

LED Side-light type

Drive IC

ST7789V3

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃


Supported by 4 Wire SPI, this type of TFT LCD can be used in many applications. ST7789V2 is the driver IC of the tft lcd. The operation temperature is -20°C to 70°C and the storage temperature is -30°C to 80°C which compliant with industry standards.

Polcd ISO9001 260 Nit 2.4 Inch Tft Display ST7789V2 240x320 Tft Screen

Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: How to control the quality of products?
A: Our company has a professional quality team, and all products are 100% inspected prior to ship.


Product Tags:

260 Nit 2.4 Inch Tft Display



ST7789V2 Tft 240x320 ISO9001



ST7789V2 2.4 tft spi 240x320


Wholesale Polcd ISO9001 260 Nit 2.4 Inch Tft Display ST7789V2 240x320 Tft Screen from china suppliers

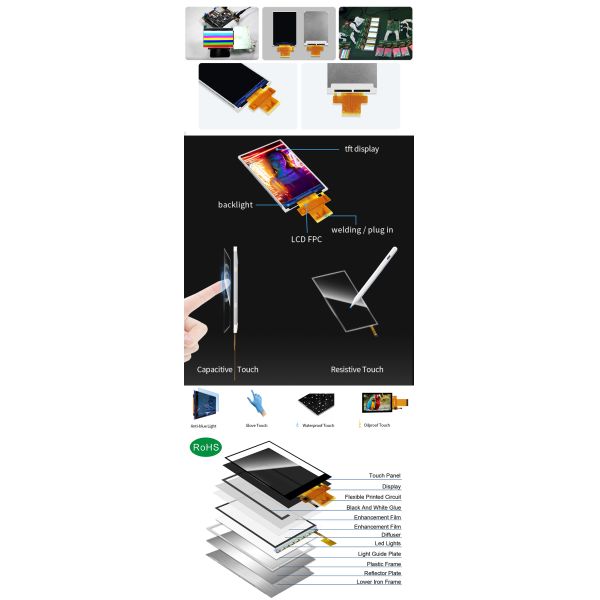

Polcd ISO9001 260 Nit 2.4 Inch Tft Display ST7789V2 240x320 Tft Screen Images
